Bus bar systems need controlled conductive connections while maintaining suitable insulation and physical separation within electrical equipment.

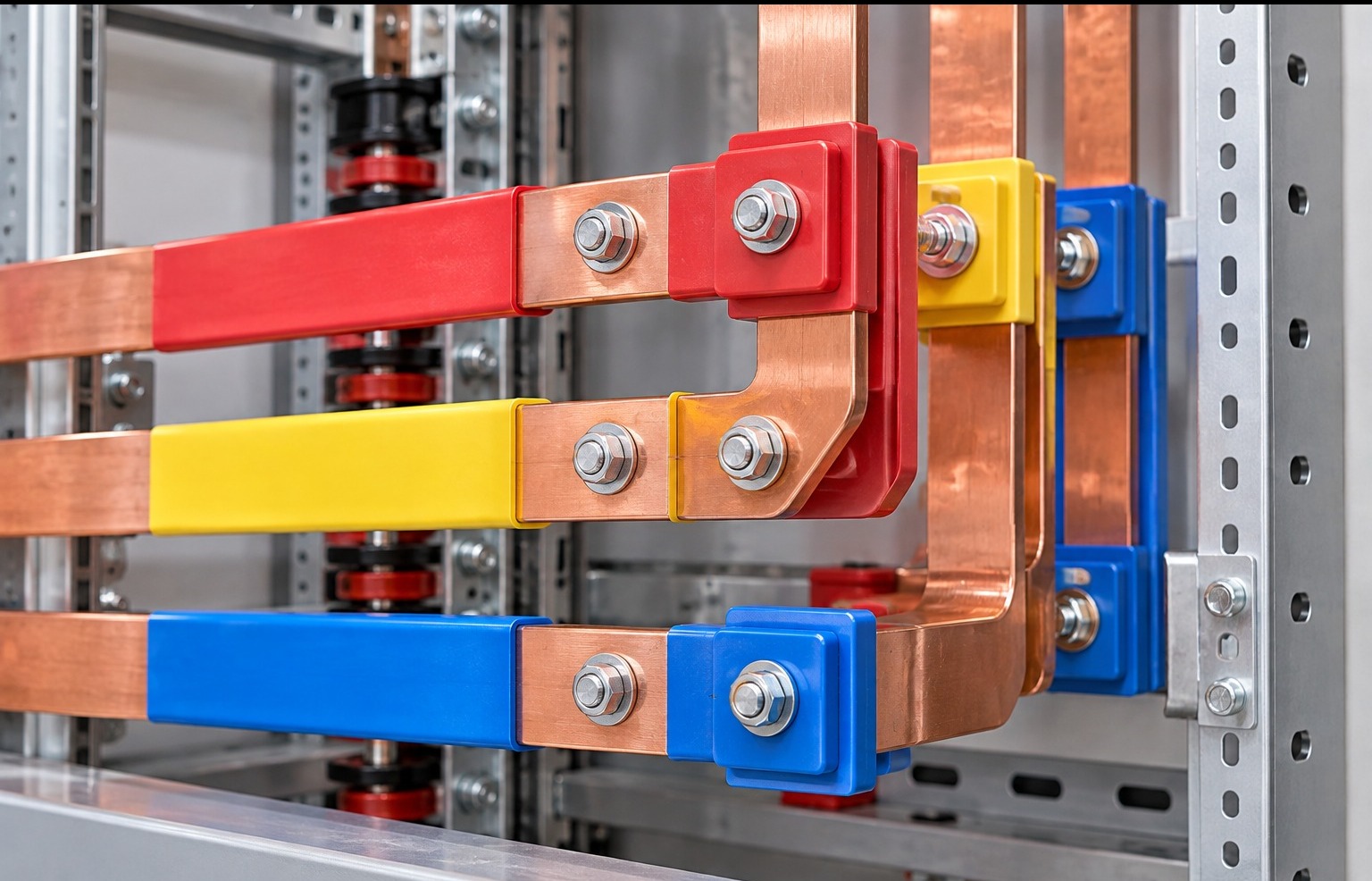

The operating principle behind Insulated Bus Bar Connectors is to combine an electrically continuous connection with an insulating interface appropriate to the intended equipment configuration.
Selection begins with the bus bar arrangement. Dimensions, connection geometry, electrical rating and available installation space need to correspond with the connector design. Mechanical alignment is also important because the connection must fit the assembly without introducing unnecessary stress.
The insulating element serves an important role in separating conductive parts from surrounding components and supporting the intended electrical arrangement. However, insulation should not be evaluated independently from the conductor connection. Both parts need to work together within the equipment design.
For equipment manufacturers and system integrators, this means interface information should be established early. Clear dimensional and electrical requirements can reduce uncertainty during procurement and assembly.
The technology can also influence equipment organization. A suitable insulated connection may support compact layouts, but maintenance access and installation procedures still need to be considered before finalizing the design.
For switchgear and distribution applications in Mumbai, engineering teams can assess bus bar configuration, connection geometry and installation constraints with Pristine Engineering Services PvtLtd when selecting an appropriate interface.
